CODA是第一个也是唯一一个紧凑的大功率UT探伤仪，能够使用Innerspec的专利脉冲器技术与EMAT和压电传感器一起工作。
手册
Videos

APPLICATIONS

CODA
CODA+
CODA SM
Spot Measurement (EMAT, DCUT)
This is some text inside of a tooltip.
Standard Piezoelectric
This is some text inside of a tooltip.
Bolt-Load Measurement
This is some text inside of a tooltip.
Encoded Applications (EMAT, PIEZO)
This is some text inside of a tooltip.
应力测量
This is some text inside of a tooltip.

Techniques

EMAT
PIEZO
技巧
普通光束
Normal, Shear, Surface
传感器
This is some text inside of a tooltip.
Innerspec
UT from any manufacturer
DCUT from Innerspec
Couplant Required
This is some text inside of a tooltip.
没有
YES (Except DCUT Sensors)
Best For
This is some text inside of a tooltip.
Extreme Temperatures, Coated and Rough Surfaces, Curved Parts
All Conventional UT Applications
厚度测量
Flaw Detection (encoded)
Corrosion Mapping (encoded)
应力测量
螺栓载荷测量

Hardware and software OPTIONS

CODA
CODA+
CODA SM
特征
This is some text inside of a tooltip.
1 Channel EMAT, 1 Channel UT Mux EMAT/PIEZO
1 Channel EMAT, 1 Channel UT
Mux EMAT/PIEZO
Single Axis Encoder
1 Channel EMAT, 1 Channel UT
Mux EMAT/PIEZO & EMAT/EMAT
Single Axis Encoder
Spot Measurement (EMAT, DCUT, PIEZO)
This is some text inside of a tooltip.
This is some text inside of a tooltip.
Encoded Thickness Measurement and Corrosion Mapping (EMAT)
This is some text inside of a tooltip.
Anisotropy (EMAT)
This is some text inside of a tooltip.
Stress Measurement - RR Wheels (EMAT)
This is some text inside of a tooltip.
OPTIONAL
Stress Measurement - Steel Bridges (EMAT)
This is some text inside of a tooltip.
OPTIONAL
Flaw Detection (PIEZO)
This is some text inside of a tooltip.
OPTIONAL
OPTIONAL
Thickness Grid (EMAT, DCUT, PIEZO)
This is some text inside of a tooltip.
OPTIONAL
OPTIONAL
OPTIONAL
Bolt Load Single (EMAT)
This is some text inside of a tooltip.
OPTIONAL
OPTIONAL
OPTIONAL
Bolt Load Double (EMAT+DCUT)
This is some text inside of a tooltip.
OPTIONAL
OPTIONAL
OPTIONAL

軟件

ITOP与无损检测-WEB

CODA uses Innerspec Technologies Operating Platform (ITOP) with NDT-WEB application software. Innerspec’s NDT-WEB technology permits accessing and operating the instrument from any phone, tablet, laptop or desktop directly from a web browser, independently of the device’s Operating System, and without having to install potentially unsafe files or apps. Connection to CODA is immediate through the built-in WiFi and/ Ethernet port.
Use your Phone with Operator Mode
Save time with Built-In Reporting Tools
Tailor-made software

Online Services with NDT-LINK

NDT-LINK is Innerspec’s cloud-based Asset Management Platform to manage users, update the equipment, order spares, request support, and store data. A single point of contact for ALL your needs.

传感器

A variety of sensors and accessories to optimize performance in the most challenging environments.

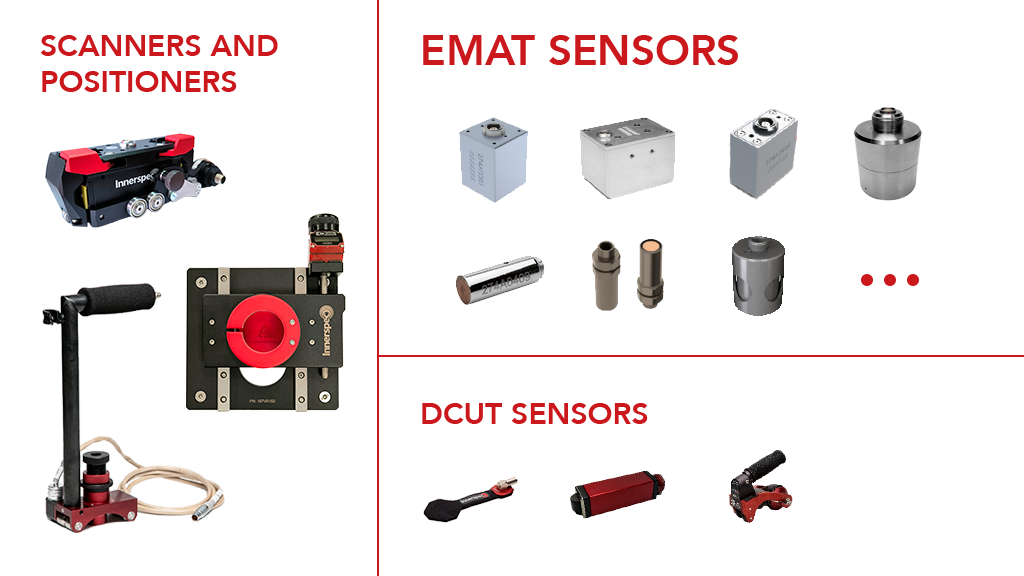

CODA can be used with 20+ EMAT sensors and DCUT sensors from Innerspec and conventional piezoelectric sensors from any manufacturer.

Innerspec’s EMAT and DCUT sensors in combination with scanners, positioners and other accessories have been designed to inspect a wide range of materials in harsh, industrial settings.

Check our Catalog of Standard EMAT & DCUT Sensors and Accessories HERE or Contact Us for your unique needs.

视频
文件

SPECIFICATIONS

CODA – Technical Specifications
超声波脉动器 1 - EMAT 1 - PIEZO
带宽 1500 kHz to 8 MHz 200 kHz to 8 MHz
脉冲重复率 Up to 400 Hz Up to 400 Hz
射频脉冲器 1-3 Cycles (Toneburst)
16kW power output
800Vpp @ 40Amp pk
0.6% maximum duty		 半周期方波
600 W 功率输出
100 V - 400 V @ 5Amp pk
0.6% 最大负载
接收器 20 dB to 90 dB Gain 0 dB to 48 dB Gain
脉冲/接收模式 脉冲回声/间距捕捉
双通道复用器 是（CODA SM）。 没有
Analog /Digital Converters 14位，100MSPS
纠正 Full-wave +/- half-wave, Envelope and RF mode
筛选 可编程数字滤波器
评估门 3 gates per channel
Amplitude, time and frequency
编码器接口 A/B Quadrature or clock/direction (CODA+, CODA SM)
PC通信 Wi-Fi 2x802.11ac/ax dual band
USB 3.0, Ethernet
軟件 ITOP与无损检测-WEB
内部存储容量 32 GB SSD
记忆 8GB内存
探头连接器 LEMO, BNC, Thermocouple
操作温度 0°C至40°C (32°F至105°F)
Power Input USB Type-C适配器输入。100-240伏交流电，50-60赫兹
Rechargeable Battery Li-Ion 14.4V, 49Wh, <10A@ 6.8Ah;
up to 5 hours battery life
其他I/O HDMI, Thermocouple
温度补偿 自动，热电偶输入
用户界面 Portable touchscreen 6.6" (default)
Web browser accessible through ITOP operating platform on any operating system and device
外形尺寸 8.3”(W) x 6.9”(D) x 2.3”(H)
210 mm(W) x 176 mm(D) x 67 mm(H)
重量 3.49lb/1.58kg (2.97 Ib/1.35kg without battery)
